FC425-32 Aeroquip by Danfoss | Abrasion Sleeve | 2.07" / 52.6 mm ID | Nylon

FC425-32 Aeroquip by Danfoss | Abrasion Sleeve | 2.07" / 52.6 mm ID | Nylon

$7.78 - $7.78
$7.78
$7.78 - $7.78
$7.78

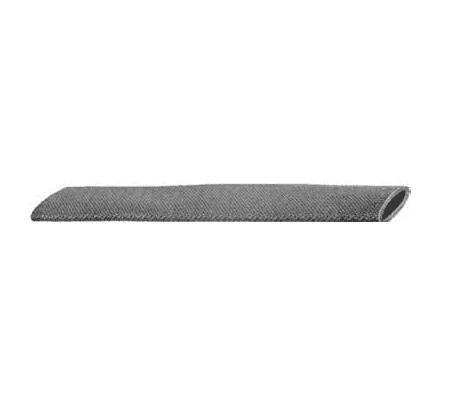

Nylon Abrasion Sleeve

Accessories - Protective Sleeves

Nylon sleeve protects hose from abrasion and allows bundling of hose lines. Meets MSHA requirements.
Specifications for Variant SKU: FC425-32 Danfoss
Part No. NominalSleeve I.D.*"B"
mm in
FC425-12 18,0 .71
FC425-16 25,4 1.00
FC425-18 28,7 1.13
FC425-20 31,7 1.25
FC425-24 40,4 1.59
FC425-28 44,4 1.75
FC425-32 52,6 2.07
FC425-38 60,4 2.38
FC425-46 72,6 2.86
FC425-54 84,8 3.34
FC425-59 93,0 3.66
*The maximum O.D. of hose fittings must be allowed for if fittings are to be covered.
